AIDO evaluator

The AIDO evaluator is the process that talks to the AIDO challenges server and gets assigned evaluation jobs. After running an evaluation experiment, it uploads the artifacts (rosbags, logs, videos, localization results) for the AIDO challenge server to process further.

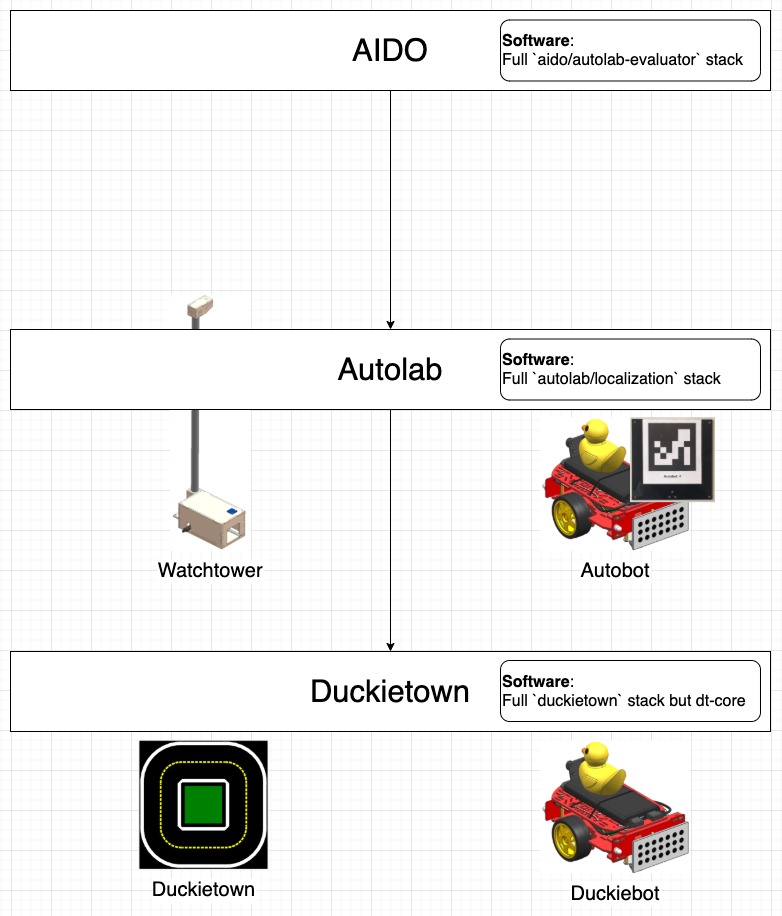

This diagram presents the abstract hierarchy among different layers involved in the Autolab evaluation for AIDO.

Entity Definition

Table 2 Entity Description

Entity	Description	Num Required	Configuration
Lab Operator	Humans at the autolab, for running programs, placing duckies etc.	1	N/A
Evaluation Runner	A local Ubuntu machine that coordinates the evaluation process…	1	Ubuntu 20.04
AIDO Server	The server that distributes submissions to be evaluated…	1

Operation: AIDO Evaluations

What you will need

• Operation: Localization is set up.

• In addition to the desktop/laptop requirement for localization, an NVIDIA GPU is needed, and drivers should be installed.

What you will get

• Can run AIDO submissions and report results.

Run localization in REST mode

This creates REST APIs that the AIDO evaluator process will use to run localization experiments with the Autolab. From the root of the duckietown/dt-autolab-localization repository:

dts devel build
dts devel run -f -X -L REST -- --hostname ETHlargeloop

Run the AIDO evaluator

Clone the Github repository duckietown/dt-aido-autolab-evaluator.

git clone https://github.com/duckietown/dt-aido-autolab-evaluator.git

The evaluator needs a directory, /data, to store temporary files in. Make sure to create it before running the evaluator.

mkdir -p /data

Then, from the root of the repository, run:

dts devel run \
    -A aido=5 \
    -A autolab=![name_of_the_map] \
    -A token=![your_duckietown_token] \
    -A stage \
    -X \
    -- -v /var/run/docker.sock:/var/run/docker.sock \
    -e DEBUG=1

Troubleshooting

TODO

TODO: write common issues and resolutions
