Operation - Use the Dashboard

This section shows how to use the Duckietown Dashboard on the Duckiebot.

What is in the Dashboard?

The following video provides a brief tour of the most important features of the Duckietown Dashboard on your Duckiebot.

To see all the available dashboard components, you will need to first log in. Once logged into the dashboard, you will see a navigation panel down the left side of the page. The 7 available subpages are:

PAGE NAME	DESCRIPTION
Portainer	A nice GUI tool for seeing all containers running on a Duckiebot
File Manager	A file manager for managing the files on the robot
Robot	A summary page for the robot status
Profile	Information for your duckietown account
Package Store	A package store contain all available packages for your Duckiebot
Users	Advanced Feature: Allow multiple students to use one Duckiebot
Settings	Advanced Feature: Change configuration of your Duckiebot dashboard manually
Restful API	Advanced Feature: Documentation to the RestAPI exposed by the Dashboard.

Let’s dive into a few pages that you will need to get started.

The Robot Page

In this page you will find several tabs that help you see and understand the status of your Duckiebot. The default tab is Info.

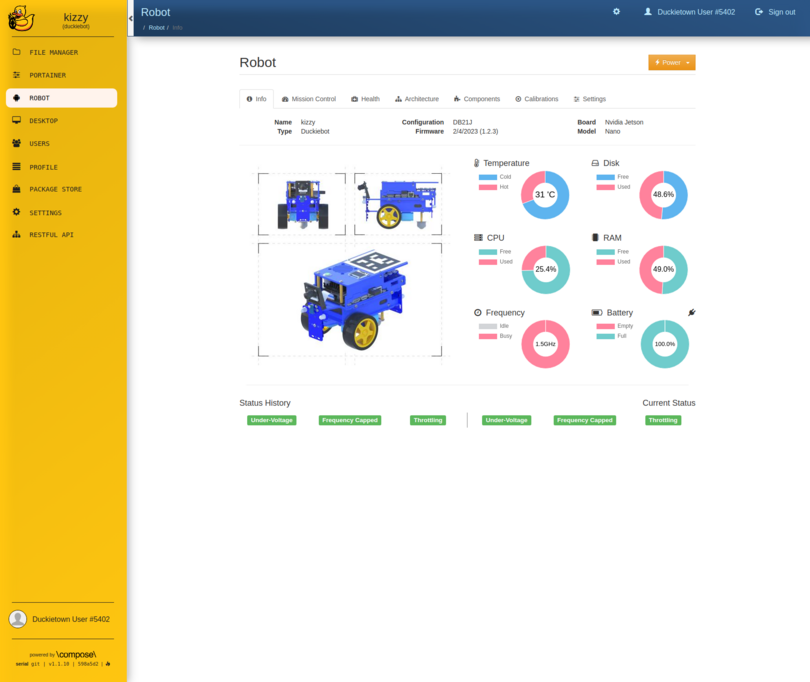

Robot - Info

In this tab, you can find information for your robot - including your robot name, type, configuration, and critical information such as CPU usage, temperature, and other crucial robot vitals.

Note

From this page you can read the Duckiebot’s firmware version, i.e., the version of the base image used during initialization.

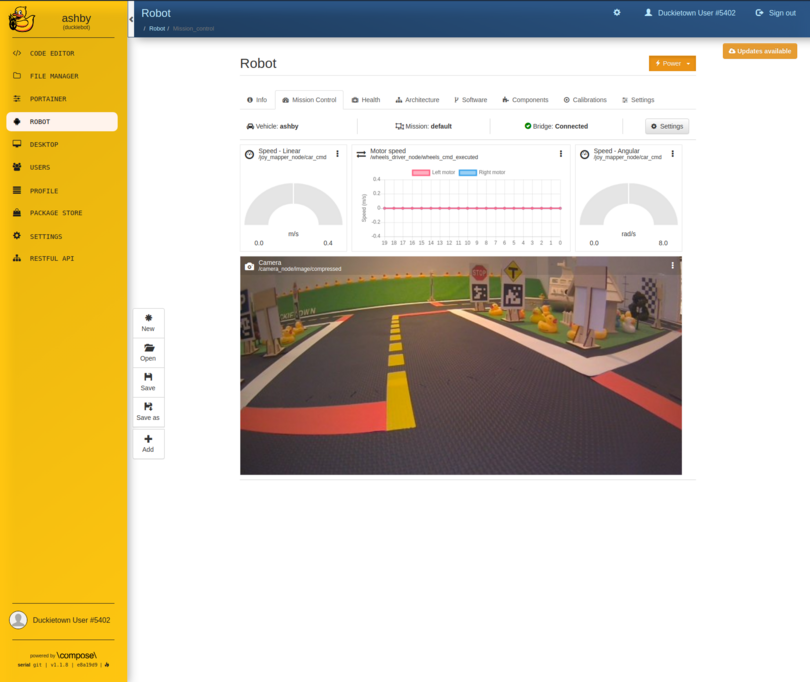

Robot - Mission Control

This is the Mission Control tab.

In this tab you can see what the Duckiebot sees via the iamge stream, the lateral and angular speed of your robot, and a plot of left and right motor speed. This is the tab that lets you monitor and control your Duckiebot.

Tip

The page contains 4 blocks by default. Feel free to drag them around and rearrange them as you please. You can also use the menu button of each block to resize them.

Troubleshooting

SYMPTOM

I do not see the camera image on the dashboard.

RESOLUTION

This could be caused by a few issues. Make sure you are accessing the dashboard using https://ROBOT_HOSTNAME.local/ instead of directly accessing the dashboard using robot IP address. Make sure the lens cap has been removed from your camera. If you still don’t see an image, jump to the Operation - Make it See page for more debugging options.

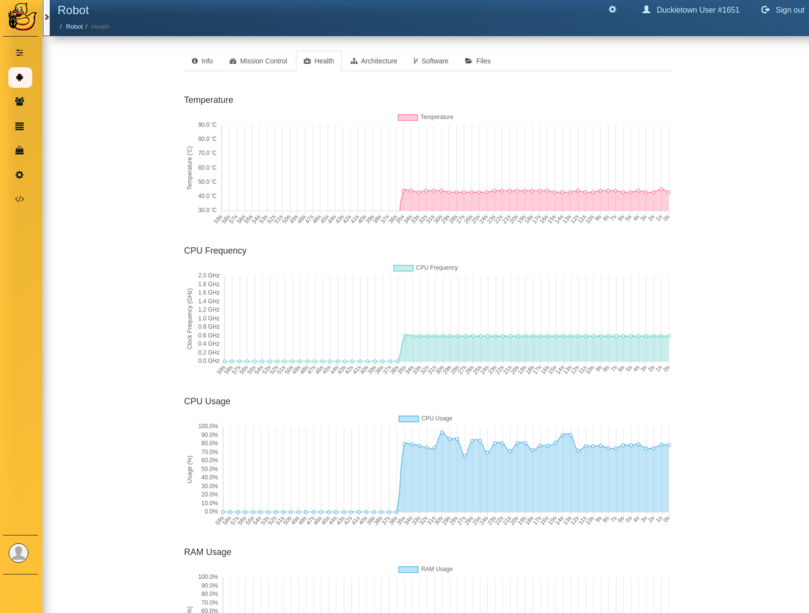

The Health Page

This is the Health Page. It will show you a plot of the robot’s health status such as temperature, frequency, and CPU usage. It is a good debugging tool to watch your code’s resource usage.

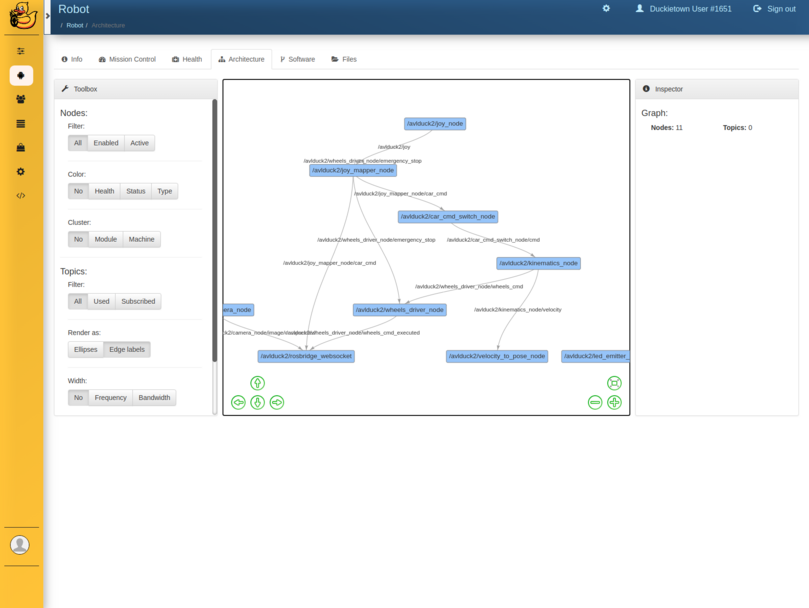

The Architecture Page

This is the Architecture Page. It will allow you to visualize all the published ROS topics and see their details. It is a useful tool to see what is running and what is not. You can also use this tool as a replacement of rqt-graph. For more instructions on rqt-graph, you can see it here

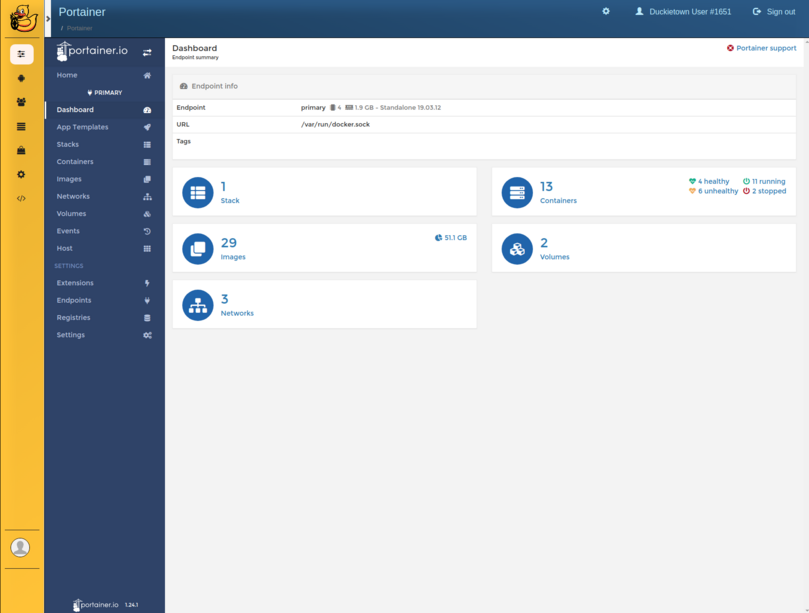

The Portainer Page

Portainer is a provided tool for managing all the docker containers that are running on the Duckiebot. Using portainer tools, you can quickly see the status of the containers on your Duckiebot.

You can select containers to see all the containers on the Duckiebot.

For more information about portainer, you can find them in this page.

Drive your Duckiebot via mission control

You can remotely drive your Duckiebot through mission control page.

The first thing to check to make sure that everything we have done so far is correct, is the status of the Bridge, in the top-right corner of the page. The label should show the status “Bridge: Connected” (as shown in the image above). If the indicator reads “Bridge: Closed”, it means that something went wrong while launching the ROS websocket node above. In that case, start again from the beginning of this section.

Note

Don’t worry if one of the blocks is called “Camera” but you don’t see an image. We will get to that later.

Toggle the Take over switch in the top-right corner of the page to gain control of your robot. You will see that the background of the page will highlight and the central plot will start moving.

You can now use the arrows on your keyboard to drive your Duckiebot.
